AZ96ADDR
1. Aerospace-Grade Aluminum Construction
2. Industry Standard 96mm Pull Stud Spacing
3. Adaptable Design for Machining Setup
4. Hardened Steel Internals for Precision and Durability
5. Quick Change Adapter for Fanuc DDR Rotary Table
6. Quick Cam Mechanism for Fixture and Vise Changeover
7. Repeatability of +/- 8µm
2. Industry Standard 96mm Pull Stud Spacing
3. Adaptable Design for Machining Setup
4. Hardened Steel Internals for Precision and Durability
5. Quick Change Adapter for Fanuc DDR Rotary Table
6. Quick Cam Mechanism for Fixture and Vise Changeover
7. Repeatability of +/- 8µm

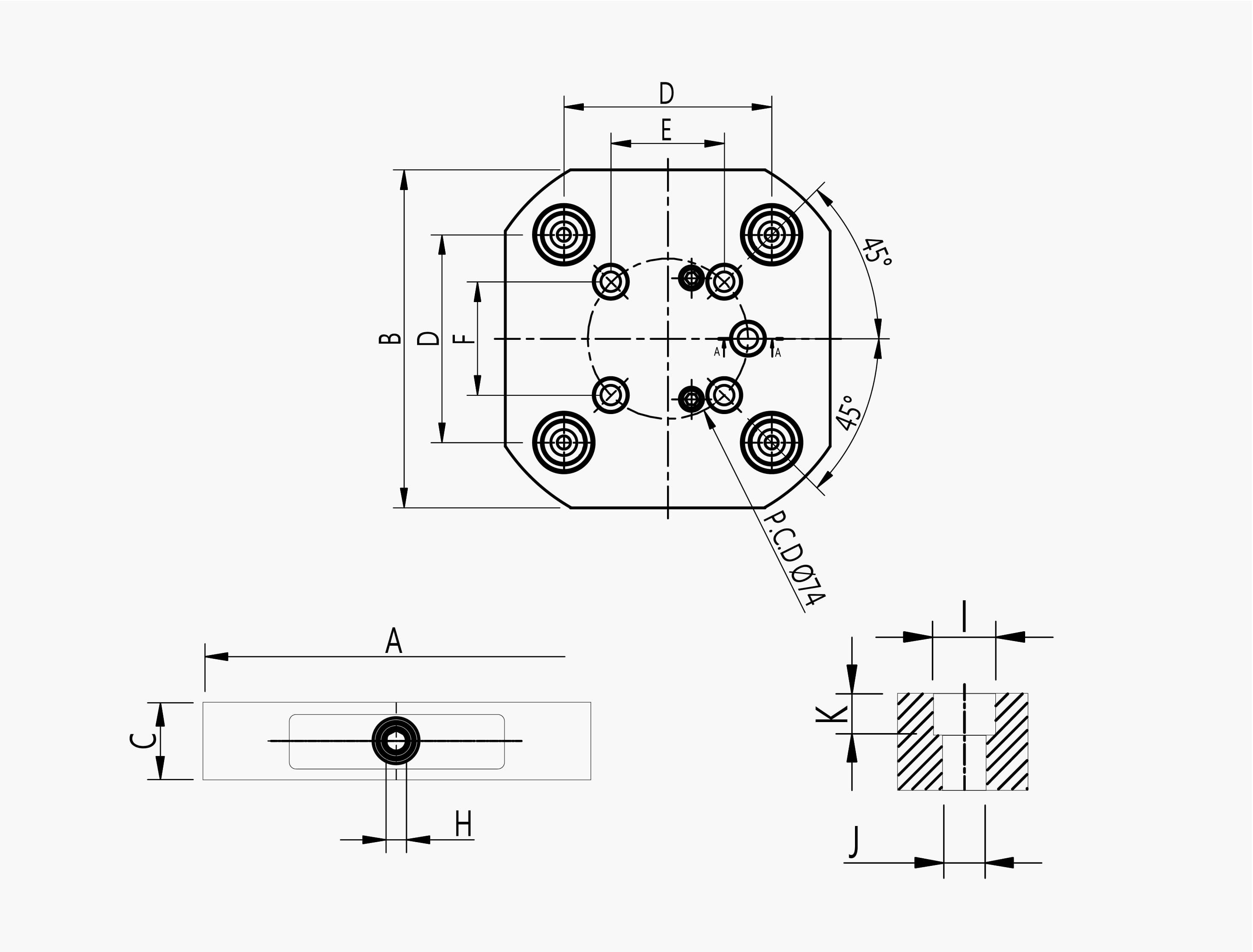

Product Specification

ITEM NO. | A | B | C | D | E | F | G | H | I | J | K | WEIGHT |
---|---|---|---|---|---|---|---|---|---|---|---|---|
MM |
||||||||||||
AZ96ADDR | 150 | 156 | 34.5 | 96 | 52.33 | 52.33 | 5-M8 | 8 |
Ø15 |
Ø9 | 8.5 | 2.7kg |
