AZ96A676
1. Aerospace-Grade Steel Construction
2. Industry Standard 96mm Pull Stud Spacing
3. Adaptable Design for Machining Setup
4. Hardened Steel Internals for Precision and Durability
5. Quick Change Adapter for Haas TR-210 and Hurco VMX30 Series Rotaries
6. Compatible with Rotary Tables with 60-degree Radial T-Slots
7. Repeatability of +/- 8µm
2. Industry Standard 96mm Pull Stud Spacing
3. Adaptable Design for Machining Setup
4. Hardened Steel Internals for Precision and Durability
5. Quick Change Adapter for Haas TR-210 and Hurco VMX30 Series Rotaries
6. Compatible with Rotary Tables with 60-degree Radial T-Slots
7. Repeatability of +/- 8µm

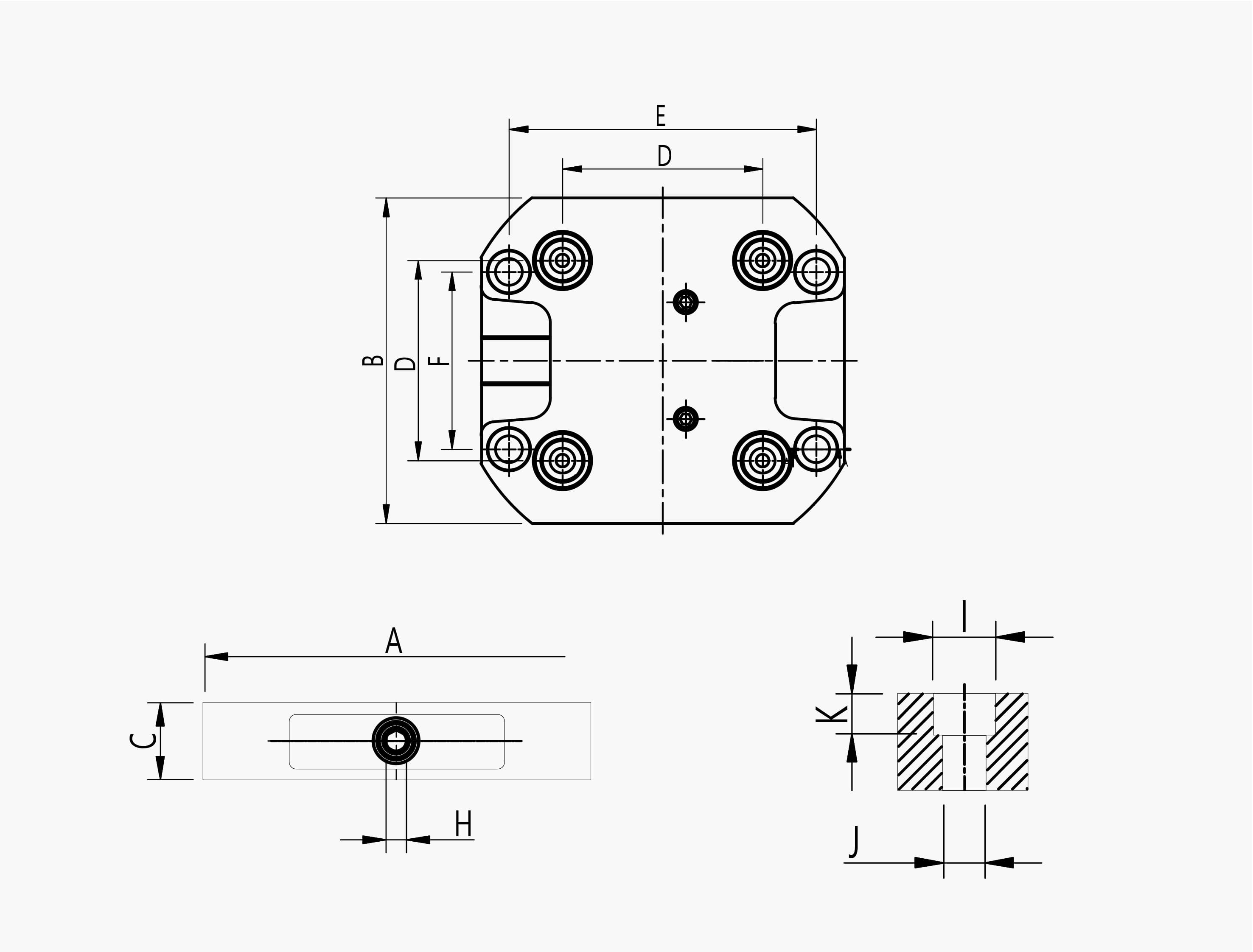

Product Specification

ITEM NO. | A | B | C | D | E | F | G | H | I | J | K | WEIGHT |
---|---|---|---|---|---|---|---|---|---|---|---|---|
MM |
||||||||||||
AZ96A676 | 174 | 156 | 30 | 96 | 147.32 | 85.06 | 4-M12 | 8 |
Ø20 |
Ø13 | 12.5 | 2.7kg |
