AZ96A67/67M/68

1. Aerospace-Grade Steel Construction
2. Industry Standard 96mm Pull Stud Spacing
3. Adaptable Design for Machining Setup
4. Hardened Steel Internals for Precision and Durability
5. Quick Change Adapter for Horizontal Machining Centers
6. Bolt Pattern 6.0” x 4.0” for Easy Mounting to Standard Tombstone Grid
7. Repeatability of +/- 8µm
  1. Inquiry
  2. Back to List
  3. Prev
  4. Next

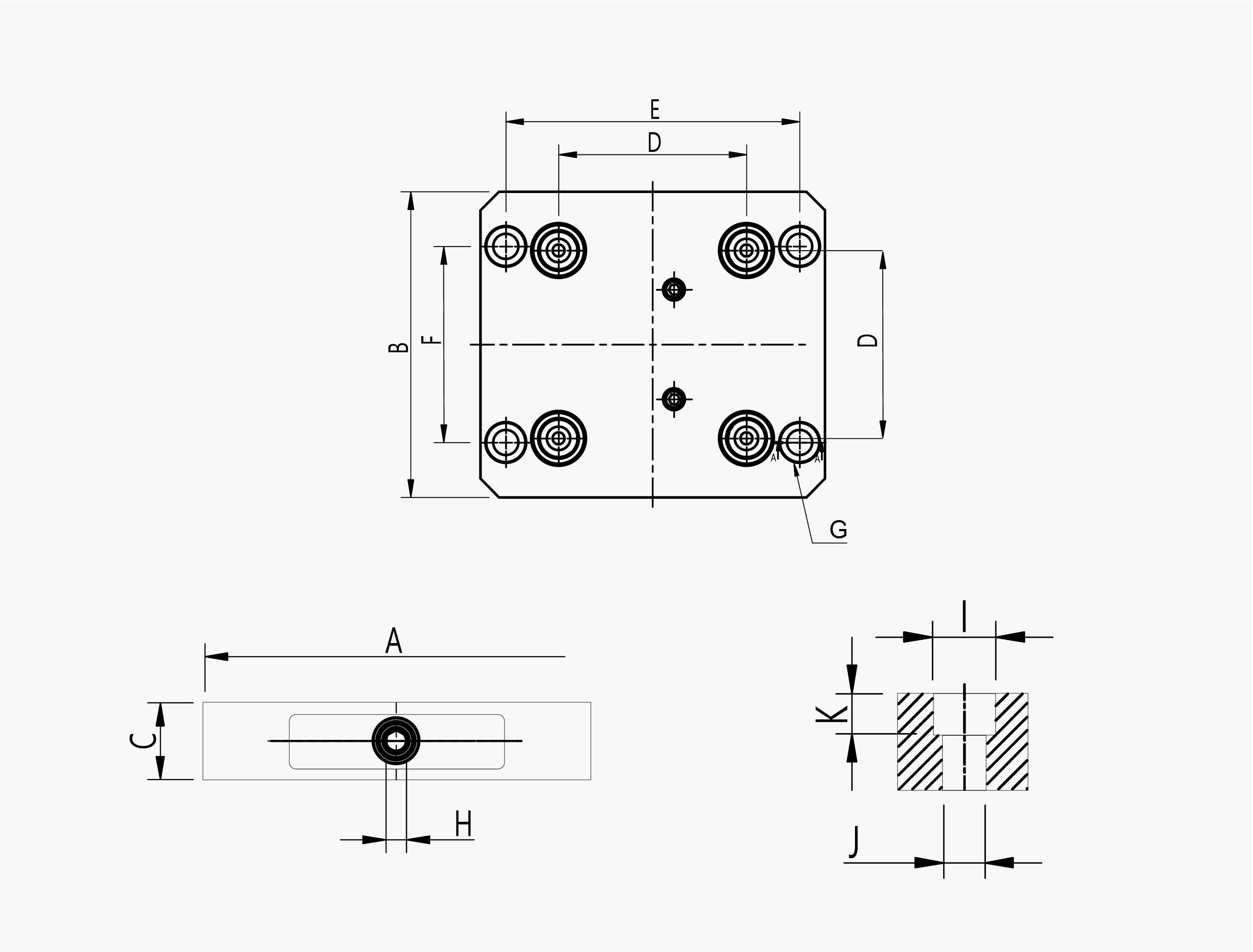

Product Specification

ITEM NO. A B C D E F G H I J K WEIGHT
MM
AZ96A67 176 156 30 96 152.4 101.6 4-1/2" 8

Ø20.6

 Ø12/8 12.7 2.9kg
AZ96A67M 176 156 30 96 150 100 4-M12 8 Ø20 Ø13 12.5 2.5kg
AZ96A68 190 156 30 96 164.98 95.25 4-M10 8 Ø18 Ø11 10.5 3.1kg
